📊 Basic Information
Model NO.
85 mm folding partition walls
Product Name
Sliding Partition Walls
Application
Banquet Hall Partitions
Thickness
85 mm(3 1/4 Inch)
Frame Material
Aluminum Alloy
Based Board
9 mm MDF Board
Production Capacity
50000 Square Meters Per Month
📦 Packaging & Delivery
Package Size
250.00cm * 130.00cm * 8.00cm
🏢 Product Overview
Banquet Hall Acoustic Movable Wooden Panel Sliding Room Divider
Finished project: In September 2019, a folding sliding partitions walls project was completed in Uganda, totaling 7 sets of walls (around 238 square meters).
This project utilized 5 different colors for a school classroom environment. The surface is melamine, which offers over 60 colors to choose from and is exceptionally easy to clean. The client expressed high satisfaction with the folding partition wall system.
📋 Technical Specifications
| Model |
BG65 |
BG85 |
BG100 |
| Suspension System |
Hanging System, with ceiling rails |
| Basic Thickness |
65mm |
85mm |
100mm |
| Max Height |
3800mm |
6000mm |
8000mm |
| Width |
800 - 1230mm |
| Sealing Strength |
Telescopic aluminum tube with rubber strip & Double seal tape |
| Weight per m² |
Approx 22-35 kg |
Approx 25-40 kg |
Approx 30-48 kg |
| Operation |
Manual System, with supplied operating handle |
✨ Key Features
- Individual panels that can be stored away for maximum space usage
- Operable top and bottom seals for effortless operation
- Aluminum frame construction for enhanced acoustics
- Various levels of sound reduction available
- Unique track and carrier system ensuring quiet operation

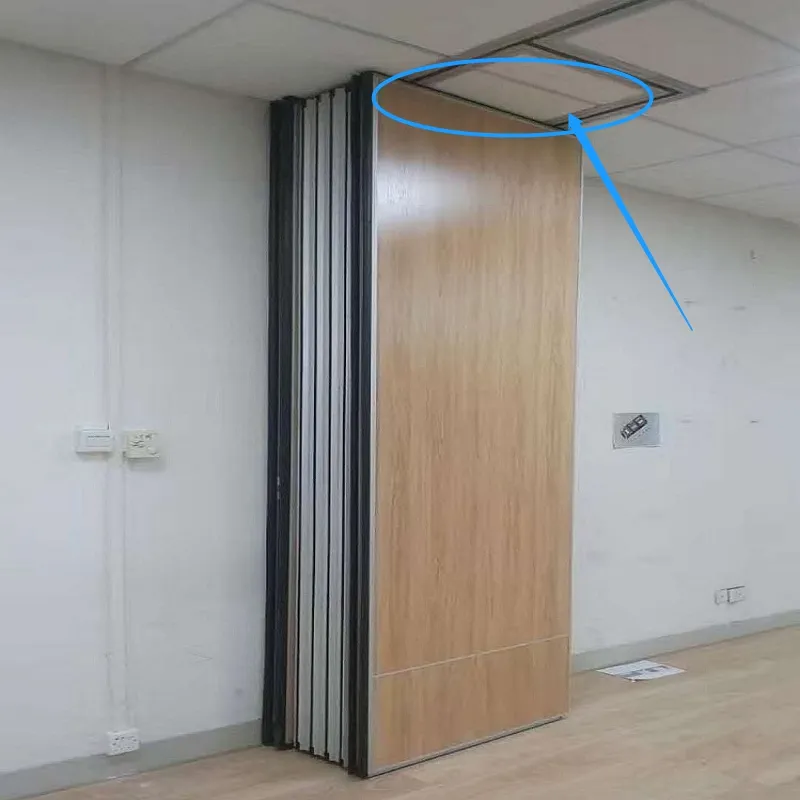

- Numerous panel stacking options for complete flexibility
- Top hung system with no floor track required
- Extensive range of surface finishes available
📦 Production & Packaging
Production Time: ONLY 5-7 DAYS

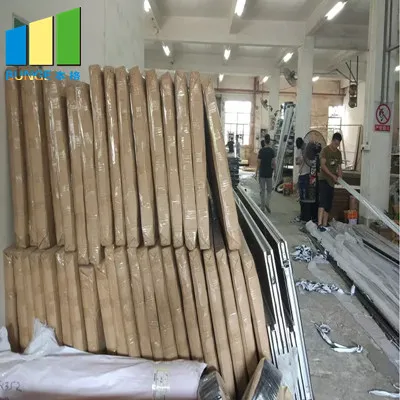

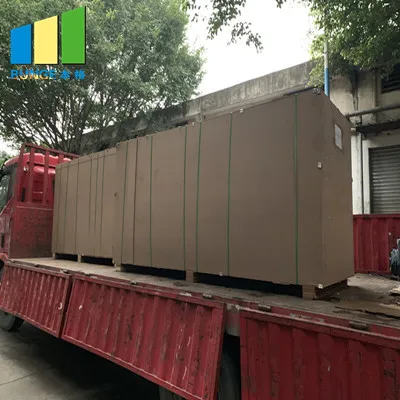

Shipping: Quick and Safe Shipping via Wooden Boxes

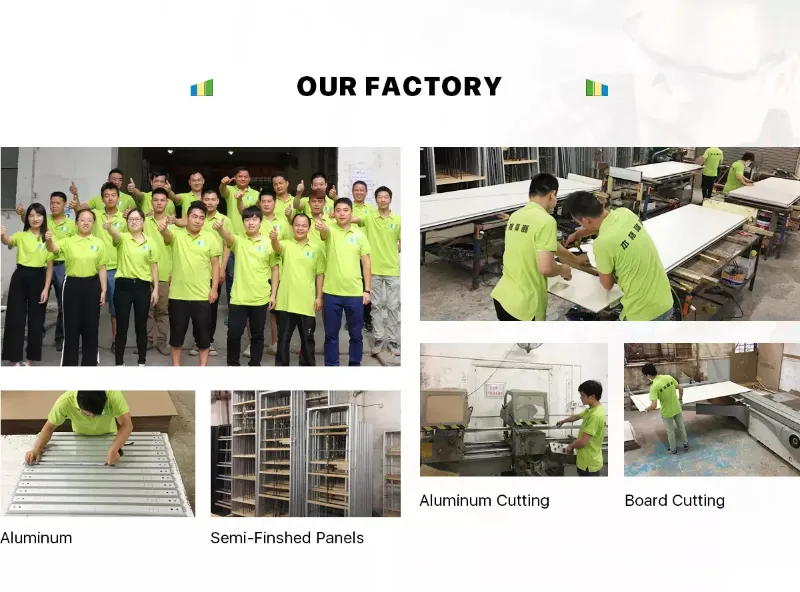

🏭 Manufacturing Expertise
With over 10 years of experience in folding sliding partition wall systems and a factory area exceeding 3000 m², we provide high-quality solutions with competitive pricing. Our systems are exported globally to countries including the USA, Australia, South Africa, Saudi Arabia, and more. We offer free designs and rapid response within 12 hours.
📍 Applications
Our folding partition walls are widely used in hotels, auditoriums, gyms, classrooms, exhibition halls, conference halls, international convention centers, upscale restaurants, showrooms, schools, hospitals, and multi-purpose halls.
❓ Frequently Asked Questions
What is the thickness of the partition walls?
We offer three main thicknesses: 65mm, 85mm, and 100mm, depending on your height and acoustic requirements.
Is a floor track required for installation?
No, our system is top-hung, meaning the panels are supported by a ceiling rail, leaving your floor completely clear.
What finishes are available for the panels?
We provide a wide range of finishes including Melamine, Plywood, MDF, Fabric, Leather, Wall paper, and even fireproof boards.
How long does production take?
Our standard production time is very efficient, typically ranging from 5 to 7 days.
Do you provide samples and warranty?
Yes, we support free samples for quality evaluation and offer a 10-year warranty on our partition systems.
Can the partition walls block sound effectively?
Yes, the systems are designed with acoustic insulation in mind, featuring double rubber seals and specialized internal materials for sound reduction.
